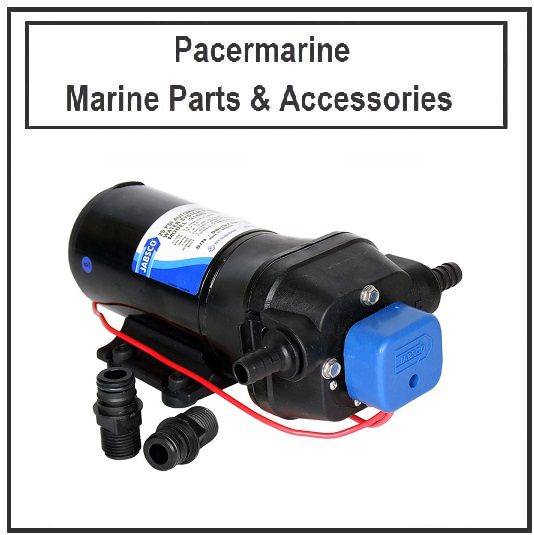

Jabsco Par Max 4′ High pressure-controlled pump 12v

Product Description

Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193

Dimensions: 250mm long, 105mm wide, 100mm high

12v fuse size 15Amp

Output: 16 litres/minute (3.

5 gallons/minute) open flow

PRESSURE SWITCH – cuts in at 1.4bar (20psi) – cuts out at 2.8bar (40psi)

Efficient, high-flow, self-priming pump serving 4 or more outlets

Multi-diaphragm design self primes to 1.8m vertical lift can run dry without damage

Supplied with snap-in ports for hose or Hep20 connectors

Quiet running

Motor protected by an automatic thermal overload cut-out

Includes bypass feature to provide smooth, quiet flow. No need for an accumulator tank

Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
