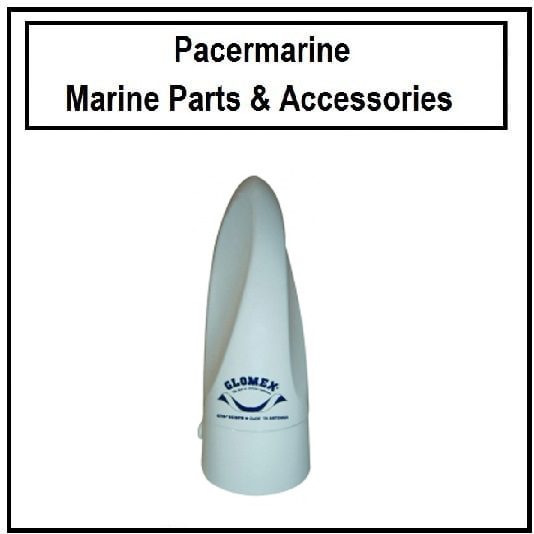

Glomex Avior TV/FM Antenna 10M Coax cable

£82.00

Only 1 left in stock

Description

Avior TV/FM Antenna with 10M coax cable.

Avior is the TV/RADIO FM Omnidirectional antenna in the Glomex range characterized by very compact dimensions (diameter 100 mm/4” and height 210 mm/8”). It enables the user to watch TV programs broadcasted with analog and digital terrestrial systems and to listen to the radio. The new amplifier allows Avior to have an increase in the gain and to receive vertically and horizontally polarized TV signals coming from more directions at the same time. The inner amplifier, coupled to the power inserter with 2 independent outputs for TV and radio (V9114OI-FM), allows the reception of VHF and UHF and FM frequencies with a single antenna. Avior can be installed on any kind of boat, whether sailboat or motorboat and can be matched to the VHF RA121 antenna.

Installation: Power Boat, Sail Boat, Inflatable R.I.B., Big Yacht, River Boat, Camion / Truck, Camper / Caravan, Pullman / Bus

Technical specification.

ANTENNA DIAMETER: 100mm (4’’)

ANTENNA HEIGHT: 210 mm (8”)
BASE DIAMETER: 25 mm (1”)
ANTENNA WEIGHT: 250 g (8,81 oz)
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal/Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 24,5 dB
NOISE FACTOR: 1,7 dB
POWER CONSUMPTION: 20 mA
POWER SUPPLY: 12 Vdc
TV SET MAX: 21
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)

Warranty: Lifetime

Packaging: SMALL2N

Height (CM): 16.5

Width (CM): 29

Depth (CM): 36

SUPPLIED ACCESSORIES

UNIVERSAL MOUNT

V9114PI-FM 2 WAY POWER INSERTER

COAXIAL CABLE 10 MTS 75 OHMS

CABLE TV 1,50 M

Additional information

Weight 2 kg
