Glomex Altair TV Antenna 12/24V 20M Coax Cable
| Product Price | Original price was: £336.95.£309.95Current price is: £309.95. |
Only 1 left in stock
| SKU: | V9126 |
| Weight: | 2 kg |
Product Description

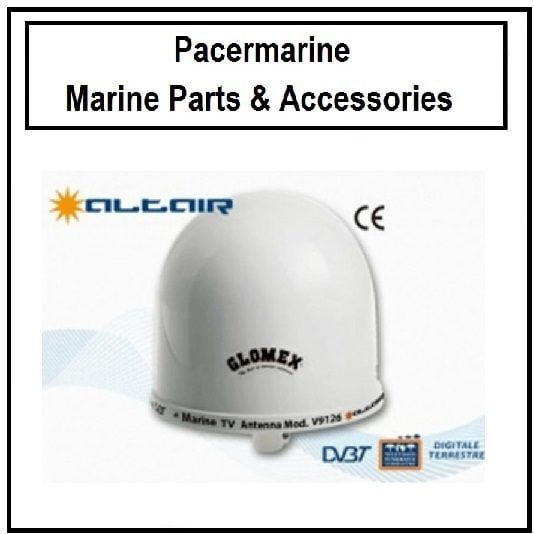

Altair TV Antenna.
Altair is the Omni-directional TV antenna ensuring high performance in signal reception with both polarizations: horizontal and vertical.
In fact, Altair, is different to the other Omni-directional antennas, in that it has a Radome with dimensions (diameter 250 mm/10”, height 300 mm/12”) allowing the installation of the vertical reception component inside. Altair is equipped with an amplifier with by-pass function (50023/98.) In order to keep a balanced look of your boat, Altair can be matched to the VHF RA124, as they are identical in shape and size.
Installation: Power Boat, Sail Boat, Big Yacht
Technical specification.
ANTENNA DIAMETER: 250 mm (10”)
ANTENNA HEIGHT: 300 mm (12”)
BASE DIAMETER: 25 mm (1”)
ANTENNA WEIGHT: 430 g (15,17 oz)
RADOME MATERIAL: U.V. resistant ASA
ANGLE OF RECEPTION: 360°
POLARIZATION: Horizontal/Vertical
IMPEDANCE: 75 ohms
FREQUENCY RANGE: 40/890 MHz
GAIN AVERAGE: 27,5 dB
NOISE FACTOR: 2,1 dB
POWER CONSUPTION: 25 mA
POWER SUPPLY: 12/24 Vdc
ANTENNA AMPL/BY PASS: Yes
ADJUSTABLE GAIN: Yes
TV SET MAX: 2
TERMINATION: F female
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
A/B SWITCH: No
Warranty: Lifetime
Packaging: BIG1 Height (CM): 28. Width (CM): 32 .Depth (CM): 30
SUPPLIED ACCESSORIES
UNIVERSAL MOUNT
COAXIAL CABLE 75 OHM 20 M (66′)
CABLE TV 1,50 M
V9144 CONNECTOR
WALL PLASTIC MOUNT
