Glomex ADHARA Community TV Antenna
| Product Price | Original price was: £694.95.£675.95Current price is: £675.95. |
Only 1 left in stock
| SKU: | V9150/12 - GLV9150AGCUDAB |
| Weight: | 2 kg |
Product Description

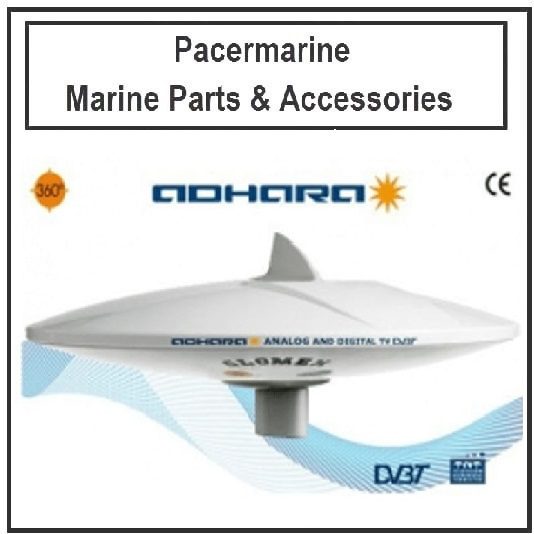

ADHARA Community TV Antenna.
The new V9150/12 is the Omnidirectional TV antenna renewed in design and performance keeping the essential style, compact dimensions (diameter 370mm / 14”) and high-quality materials, developed to meet the requirements of large yachts and cargo ships.
Adhara is distinguished by an innovative design based on the new pinnacle as a “shark fin” (high 55mm /2,2”), for receiving vertically polarized TV signals, that fit perfectly on the new radome with aerodynamic lines. Thanks to vertical pinnacle inside the “shark fin”, Adhara can receive analog or digital TV signals polarized both horizontally and vertically.
Adhara is equipped with 2 amplifiers: the 50023/98SR12 amplifier can be equipped with the A/B switch option (from an antenna or another source), and the 50022/10 is both amplifier and splitter allowing the signal to be directed to several TVs whilst retaining a high-quality image.
Installation: Power Boat, Sail Boat, Big Yacht
Technical specification.
Antenna diameter: 370mm (14’’)
Antenna light: 185 (7’’) [240m (9.5’’) with shark fin]
Base diameter: 25mm (1’’)
Antenna weight: 900g (31.740z) [975g (34.39oz) with shark fin]
Radome material: U.V resistant ASA
The angle of reception: 360’
Polarization: Horizontal/vertical
Impedance: 75 ohms
Frequency range: 40/80 MHZ
Gain average: 36dB
Noise factor: 2,1dB
Power consumption: 120MA
Power supply: 12vdc
ANTENNA AMPL/BYPASS: No
ADJUSTABLE GAIN: Yes
TV SET MAX: 6
TERMINATION: F females
CONNECTOR SUPPLIED: F male gold plated connector (V9144)
A/B switch: Yes
Warranty: Lifetime
Packaging: ACC20
Height (CM): 37
Width (CM): 49
Depth (CM): 20.5
SUPPLIED ACCESSORIES
COAXIAL CABLE 75 OHM 20 M (66′)
COAX CABLE 75 OHM 25 M
V9144 CONNECTOR
WALL PLASTIC MOUNT
