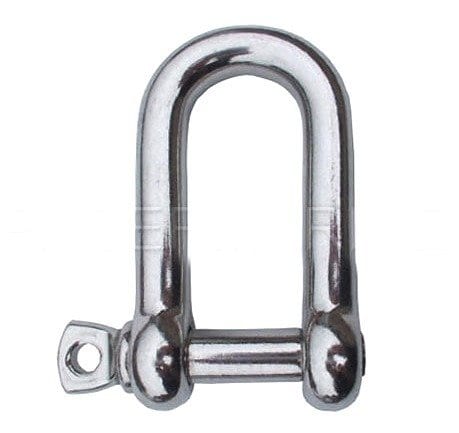

Dee Stainless Steel Shackle 4 – 12mm
Product Description
Dee Stainless Steel Shackle 4 – 12mm
These shackles have a screw collared pin which is removable from the Bow shaped shackle body they are ideal for maritime use, bow shackle is wider than a dee shackle and can be used for most applications.
Pin size | B | L | J |
4mm (3/16″) | 4mm | 14mm | 8mm |
5mm (3/16″) | 5mm | 17mm | 10mm |
6mm (1/4″) | 6mm | 21mm | 12mm |
8mm (5/16″) | 8mm | 28mm | 16mm |
10mm (3/8″) | 10mm | 35mm | 20mm |
12mm (1/2″) | 12mm | 42mm | 24mm |
