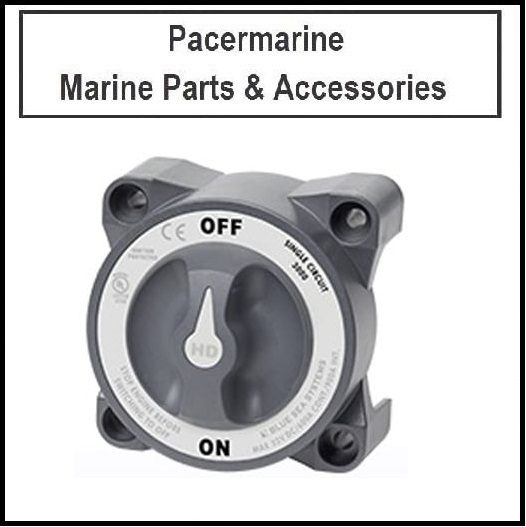

Home » Shop Catalogue » Blue Sea HD-Series On-Off Battery Switch
| Product Price |
£145.00 Original price was: £145.00.£119.95Current price is: £119.95. |
Switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
| Specifications |
| Switch Type |
Single Circuit ON-OFF |
| Color |
Grey |
| Switch Positions |
2 |
| Battery Combine |
No |
| Alternator Field Disconnect |
No |
| Maximum Voltage |
32V DC |
| Terminal Stud Torque |
220 in-lb (24.86 Nm) |
| Continuous Rating |
600A |
| Intermittent Rating |
900A (5 min) |
| Cranking Rating 30 sec |
1750A |
| Battery Inputs |
1 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) |
| Cable Quantity to Meet Ratings |
Two Cables |
| Cable Size to Meet Ratings |
4/0 AWG (120mm²) |
| Mounting Holes |
Accept 1/4″ (M6) Screw |
| Terminal Stud Size |
1/2″ (M12) |
