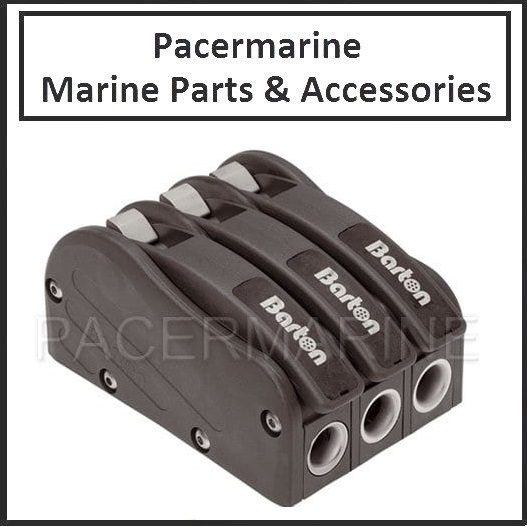

Barton Triple DO 550 Rope Clutch

£189.00

Only 4 left in stock

SKU: BA81502 Categories: , Brand:

Description

For cruising and racing yachts, offering a max. holding power of up to 550 kgs.

Modern, high-performance materials.
Manufactured from modern lightweight materials. The DO 550 moulded parts are from high-grade plastics which are strong, light and impact-resistant. Cams and bases are from marine grade aluminium, ‘Spectro’ anodised for a long life in the harsh marine environment.

True Clutch Mechanism.
This true clutch mechanism allows line to be adjusted through the unit in the closed, locked position with minimal slippage. Release under load is positive and requires little effort.

The mechanism’s opening and closing action is precise and easy to operate, even with cold wet hands. A positive handle lock in closed position is also featured.

Kind to Lines.
The clutch’s cam and base, manufactured from high-grade extruded aluminium, feature a specially tempered tooth design which allows for maximum grip with minimal slippage, whilst being kind to your lines.

Stainless steel rope fairleads are fitted to both line entry and exit points; a feature which helps to prevent wear to both clutch and lines.

Bolt-together construction for straight-forward servicing.
The DO 550 clutch range features the advantage of a bolt-together construction which allows for ease of servicing and replacement of parts.

Ergonomically Designed Handle.
The handle is strong and easy to grip, with a positive smooth lock and unlock action.

A unique feature of this new design is the removable insert on the top face of the handle. These inserts are available (sold separately) with a selection for both cruising and racing yachts.

Triple DO 550 clutch Lenght 133 mm, Width 91 mm, Height 68 mm, Weight 754g,



Additional information

Weight 5.00 kg
Part No.

81 502

Length

133mm

Width

91mm

Height

68mm

Weight

754g

Max. Holding Capacity

550Kg

Max. Rope Capacity

up to 12mm

Fastenings

6mm

Hole Centres

79mm
